School Library

Cases › School Library

Bespoke image resin floors

Winner of FeRFA Small Commercial Project of the Year 2014

Images of this project speak for themselves, and it remains one of our most creative endeavours.

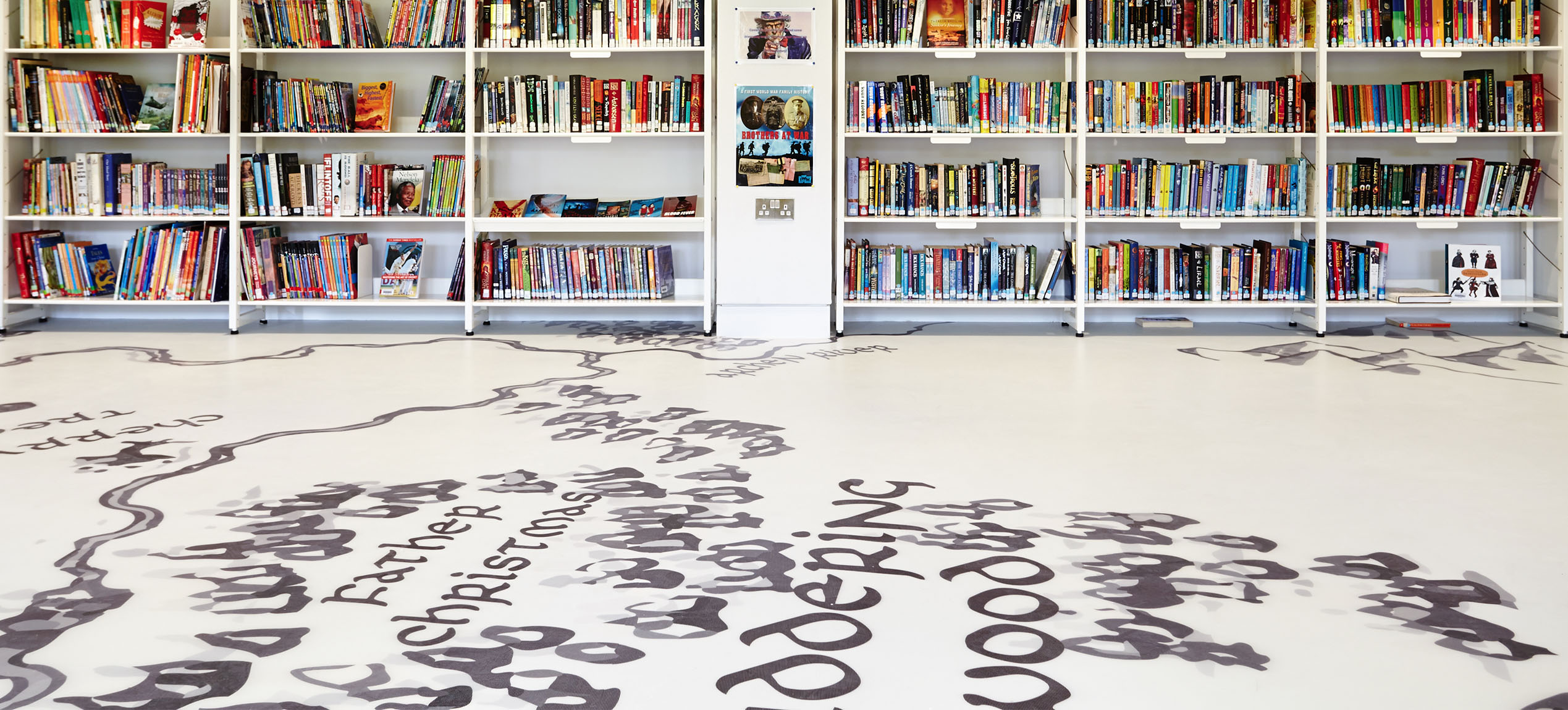

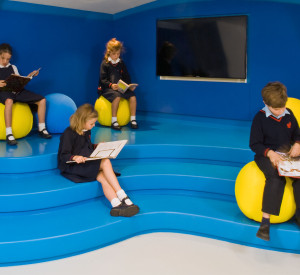

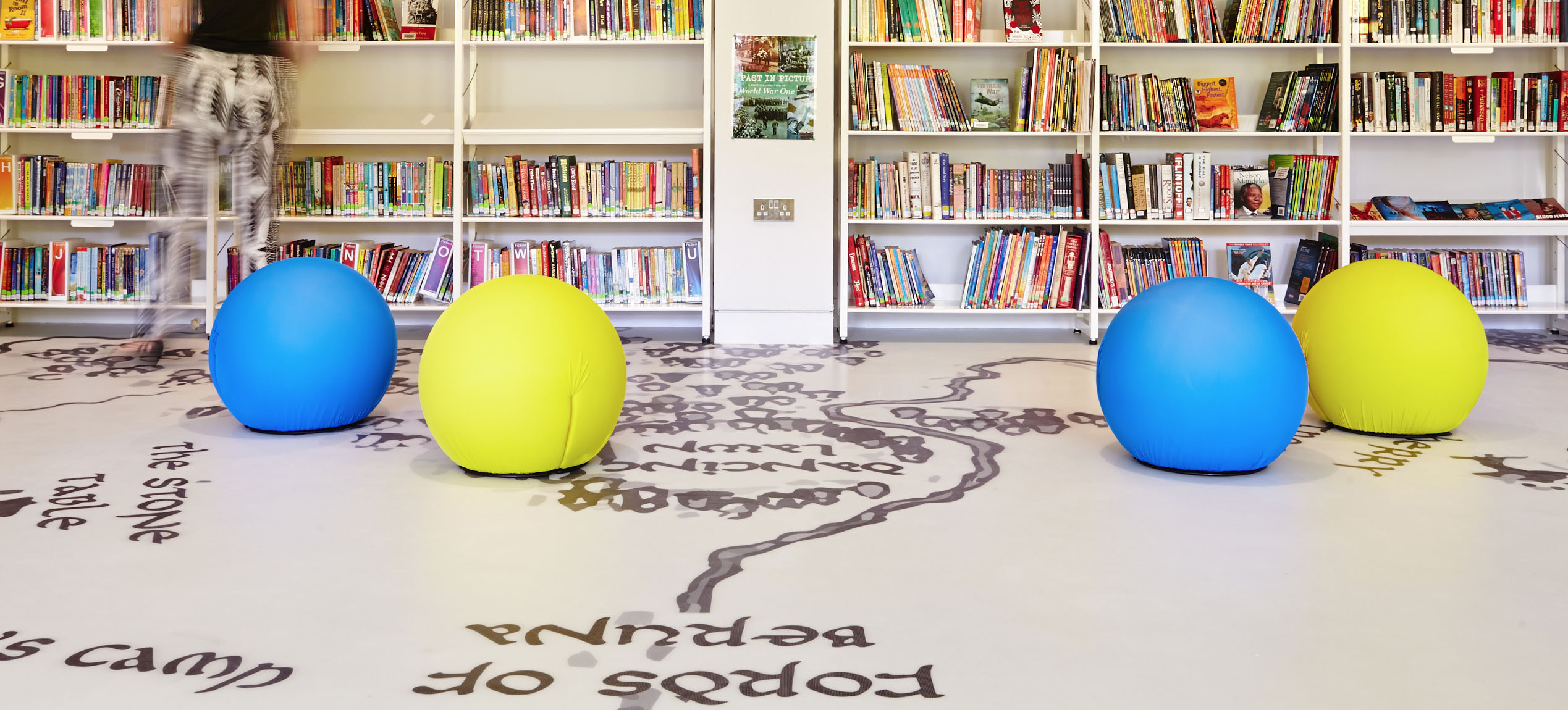

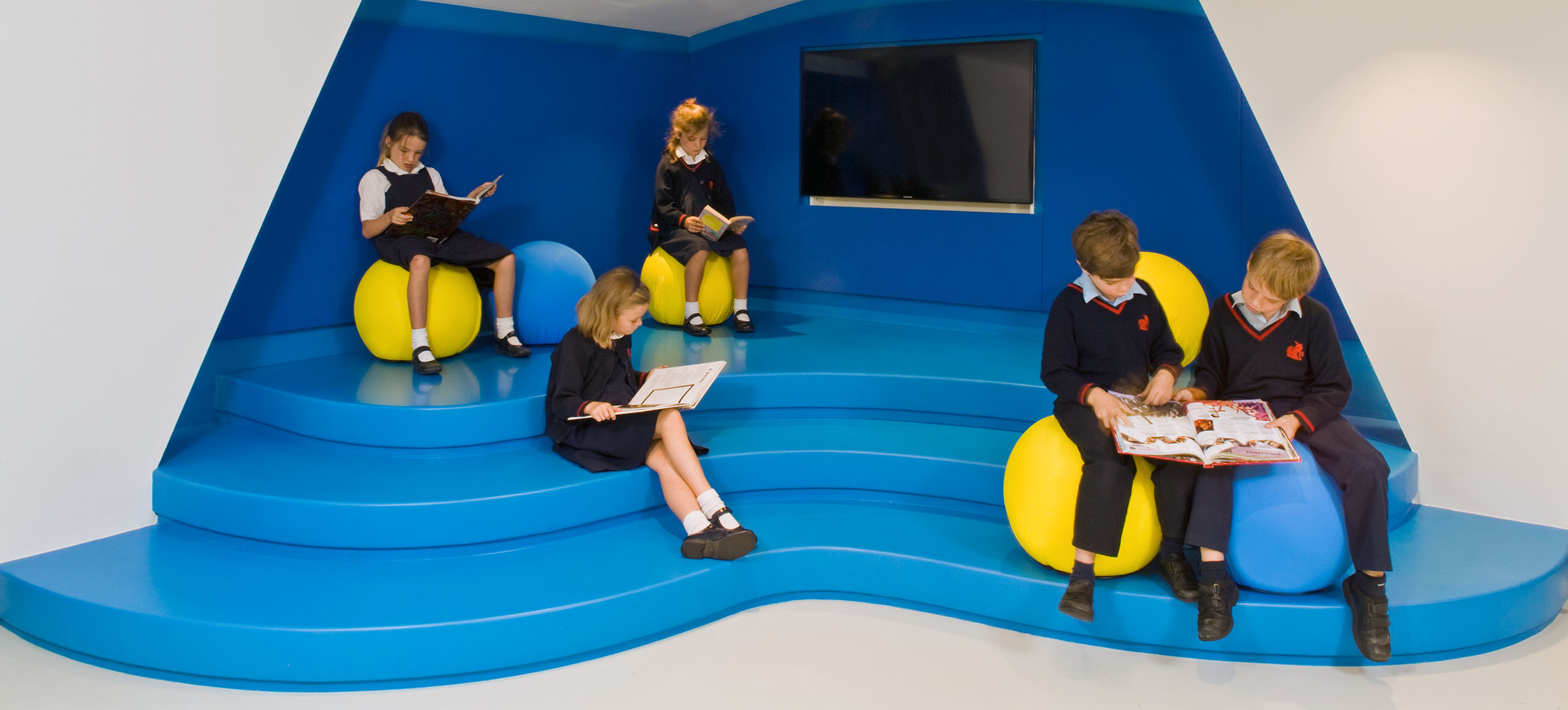

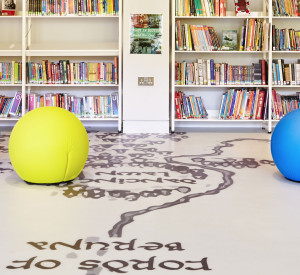

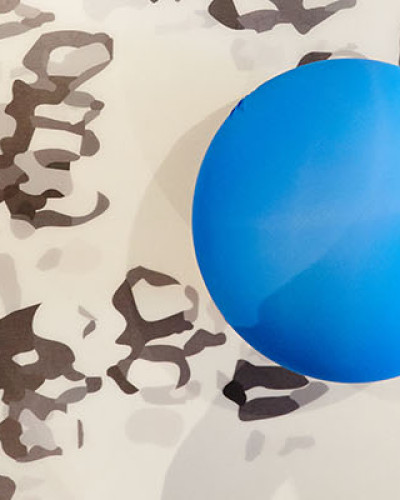

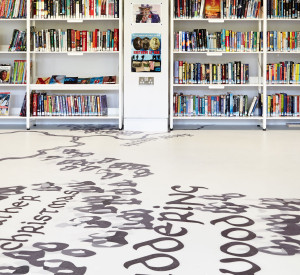

The brief was for a floor that incorporated a map of C.S. Lewis´ inimitable Narnia - but it needed to also be reversible so as to preserve the wonderful parquet flooring beneath. Our DesignSphere system was ideally suited. Laid onto fermacell boards that could be removed in the future, our resin was laid above and below a unique mesh incorporating the image. Furthermore we poured bespoke blue resin over a dynamic step/bench set up that breaks up a corner of the room. Because of the incorporation of the image it is resistant to wear and tear or tarnishing and can handle the daily traffic of an entire school! We were thrilled when it won Best Small Commercial Project of the Year 2014 at the annual FeRFA awards.

Get a quote

DesignSphere technical data

Thickness 7mm
Layers 7
Elasticity 60%
Shore Hardness D70
Abrasion Resistance Good
Slip Rating R9-R11 EN 51130
Fire Classification Bfls1 EN 13501-1
Thermal Resistance tbc
Emission Free YES AgBB
Area Use Classification 23/33 EN685
Application Time 7 days
Impact Sound Reduction 1dB
Impact Sound Reduction with Shockpad 13dB
Resistance to Chair Castors Good EN 425
Colour Range Unlimited
FeRFA Type Type 5 BS 8204
Guarantee 5 years

Download Technical Data Sheet

Further information

If you require any further information on our floors please don't hesitate to contact us.
